- Place of Origin: China
- Brand Name: worldslaser
- Model Number: wd-10/20

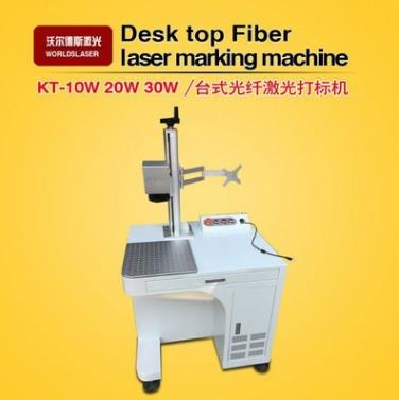

Bench marking machine performance characteristics:
1) small size, suitable for bad environment:
2) using low cost:
Electro-optic conversion efficiency up to 30%, the whole machine consumes less than 500 w, save energy consumption spending.
3) good beam quality:
4) laser makes the long service life:
Optical fiber laser marking machine using laser diode as a source of loss, the average working time can reach 100000 hours.
5) processing speed:
Processing speed is a traditional laser marking machines, 2 to 3 times.
Optical fiber laser marking machine beam quality is better than the traditional solid laser marking machine, for the base model (TEMOO) output, gather the light spot diameter less than 20 nm. Especially suitable for precision, fine marking.
6) is a maintenance free operation:
Laser without any maintenance, also need not adjust or cleaning lenses.
- Place of Origin: China
- Brand Name: worldslaser
- Model Number: wd-10/20
Machine type: wd - 10/20
The laser output power: 10 w or less
Laser wavelength: 1064 nm
Beam quality M2: < 1.4
Laser frequency tuning Q: 20 KHZ to 100 KHZ
Standard carving range: 110 mm * 110 mm
Optional scope of sculpture
70 mm * 70 mm / 150 mm * 150 mm
Engraving depth: 1 mm or less
The machine power: 500 w
Minimum line width: 0.01 mm
Repeat accuracy: / - 0.0001 mm
Demand for electricity
Single-phase AC AC 90-250 - v / 50 hz 5 a
